168

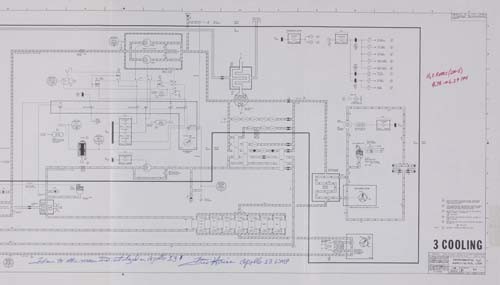

FLOWN Apollo 13 LM Systems Data Book Page. A schematic covering the LM Cooling System. Features all the crew interface knobs, meters, and switches
FLOWN Apollo 13 LM Systems Data Book Page. A schematic covering the LM Cooling System. Features all the crew interface knobs, meters, and switches with their corresponding electrical and Glycol cooling plumbing system. Approximately 36x10 inches, pre-folded to 8x10 inches. NASA/MSC, 1969
-
Notes: The schematic has a note written in red ink by Haise prior to the Apollo 13 launch of: "H20 Rates (LM-5) 4.74 -> 6.24 PPH (Pounds Per Hour)." These were values from his days as the Apollo 11 LM-5 Back-up LMP and recorded for his reference for use on Apollo 13. During the actual Apollo 13 mission, Haise did a quick calculation of 333+85+12=430/5=86 in black ink on the far left side of this sheet. Those numbers defined the total water remaining in both the LM descent stage, ascent stage, and other available sources, which totaled to 430 pounds. Dividing by the approximate water usage rate of 5 pounds per hour gave the time remaining to water depletion at 86 hours.
This LM schematic was a critical reference tool during the flight. Many of the LM systems were powered down to save electrical power. These extreme temperature conditions placed many of "Aquarius's" systems into unknown flight territory. This schematic provided a means for the crew to monitor flight systems.
The schematic has been inscribed and signed: "Flown to the moon and utilized on Apollo 13! Fred Haise, Apollo 13 LMP" along the lower edge center. With a Typed Letter Signed from Fred Haise.
